High Speed Cardboard Grooving Machine Low Noise No Rough Edge 40m / Min

  • 1
  • 2

Brand Name : MAXWELL CUT

Model Number : MEC

Certification : CE

Place of Origin : SHANGHAI CHINA

MOQ : 1 units

Working speed : 40m/min (150-200 pcs/min)

Carboard size : 140*120-800*600mm

Cardboard thickness : 1-4mm

MDF Thickness : 3mm （MAX）

Price : up to the sizes

Packaging Details : wooden boxes

Delivery Time : within one month after we get the order

Payment Terms : TT, WU, Paypal

Supply Ability : 30 sets per month

Cutting Materials : foam, EVA, PVC,PP Sheets, polypropylene corrugated sheet ,corrugated cardboard up to 60 mm, cartons, laminates, printing blankets， coating plates, preprinted vinyl films, reflective sheeting, textile and technical fabrics, soft,

Cutting thickness : less than 100mm

Size : 1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, customerised

tools : oscillating knife, Creasing wheel, Pen, laser light,

Tools : Pneumatic tool, Vcut, Kiss Cut, CCD

TABLE : Flatbed, Conveybelt,

Contact Now

Automatic High Speed Grooving Machine , cardboard, MDF, grooving machine, 75°-140° angle, 1-3mm thickness,

Introduction

LS-1200B Automatic high speed grooving machine is newly invented based on the experience of older roller groover. We apply the new technology which uses some belts to bind the card board and the roller together to convey the cardboard. This technology makes the groove straight and correctly. Thereby the products are on great quality.

Advantage

  • High speed
  • Automatic feeding
  • Dustless and no noise
  • Automatic collecting
  • No rough edge
  • Automatic aligning
  • Grooving angle adjustable from 75°to 140°

Product range

  • 1--4mm cardboard
  • 1--3mm MDF
  • 0.4--1mm thin paper
  • Triangle cardboard

Specification

Quantity of Groove at a time 8 slots
Working speed 40m/min (150-200 pcs/min)
Cardboard size 140*120-800*600mm
Cardboard thickness 1-4mm
MDF Thickness 3mm (MAX)
Grooving distance (min) 0
Angle of the grooves 75°-140°
Machine Dimension 2015*1320*1350

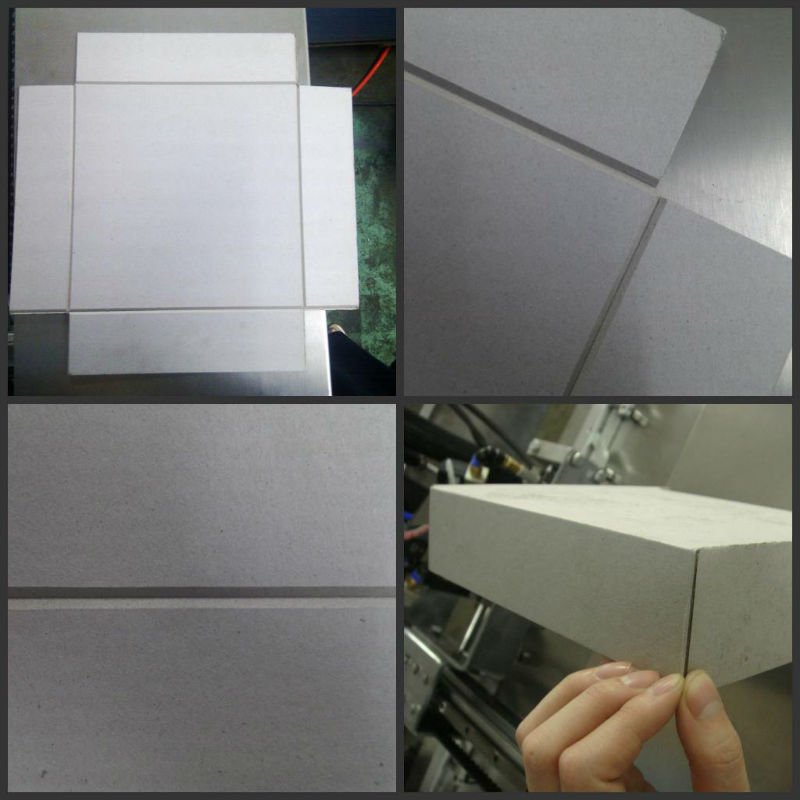

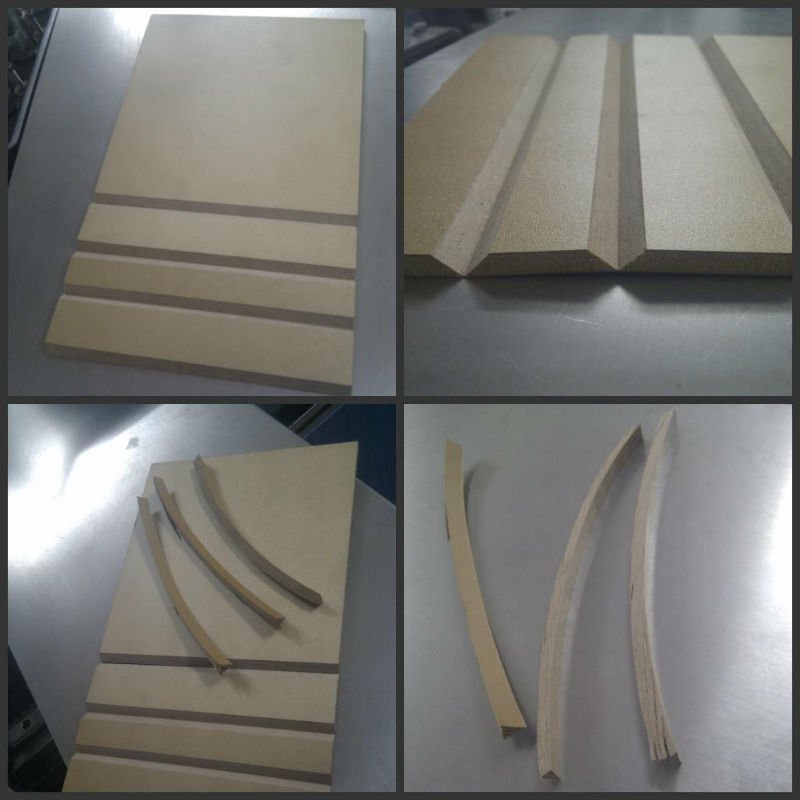

samples

High Speed Cardboard Grooving Machine Low Noise No Rough Edge 40m / Min

High Speed Cardboard Grooving Machine Low Noise No Rough Edge 40m / Min
